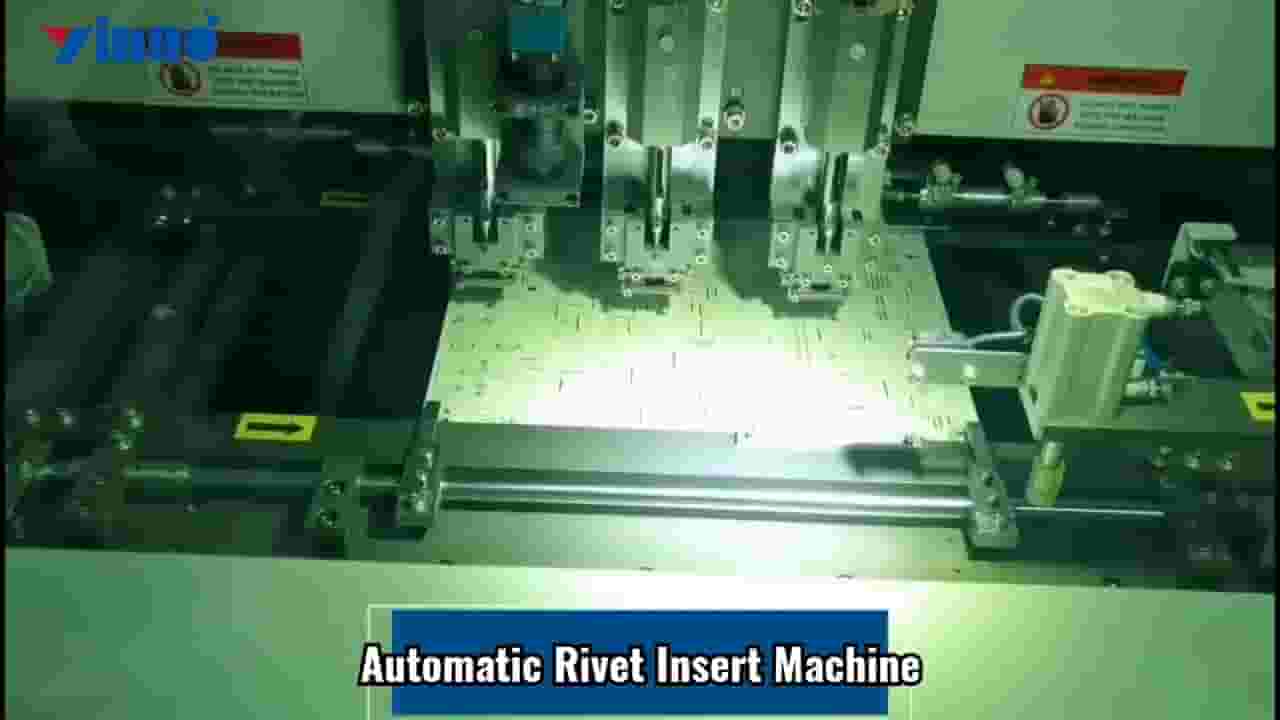

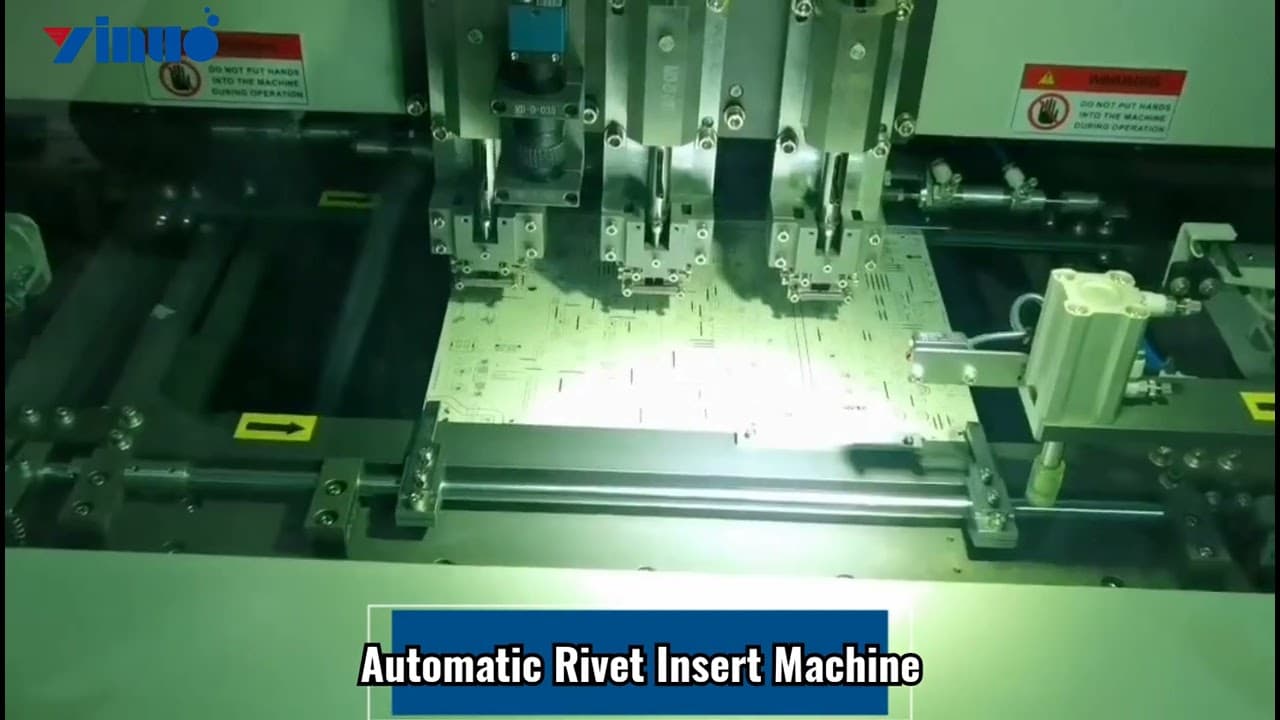

An automatic rivet insertion machine is a specialized piece of equipment designed to install small, loose rivets onto a printed circuit board or other assembly. This process is typically performed manually in many electronics factories, which is slow, inconsistent, and labor-intensive. The machine automates the picking, orienting, and pressing of these mechanical fasteners. The machine operates using a vibratory bowl feeder as its core component. Bulk rivets are loaded into the bowl, which uses controlled vibration to orient and singulate them. An escapement mechanism releases one rivet at a time onto a track. A pneumatic or electric cylinder, or sometimes a small robotic actuator, then pushes the rivet into a pre-drilled or pre-molded hole on the PCB or plastic housing. The machine often includes a simple vision system or sensor to verify the presence of the rivet in the track before the insertion cycle begins, ensuring process reliability. Key specifications for such a machine focus on the rivet dimensions it can handle. This includes the rivet's head diameter, shank diameter, and overall length. Common capacities are for rivets with diameters from 1.0mm to 4.0mm and lengths up to 10mm. Yinuo Electronics The placement speed is typically in the range of 20 to 40 pieces per minute, which is significantly faster than manual insertion. Placement accuracy is generally within ±0.1mm, which is necessary for the rivet to align correctly with its hole. The machine frame is usually constructed from aluminum to provide rigidity while keeping the unit lightweight, and it requires a standard compressed air supply, typically at 0.5 to 0.7 MPa. The primary application for automatic rivet insertion is in the assembly of consumer electronics, communication devices, and small appliances. Specific use cases include attaching metal brackets or shields to a PCB mainboard, securing connectors or battery contacts to a plastic chassis, and fastening two plastic housing parts together where screws are not feasible. By integrating this machine into the production line, manufacturers can achieve a consistent insertion depth and force, reduce operator fatigue, and increase throughput. It is a targeted automation solution for a specific, repetitive manual task that is common in 3C product assembly lines. Yinuo Electronics Co., Limited www.esmte.com www.all-aismt.com www.allaismt.com www.aismtpro.com www.fujinxt.com Email: [email protected] WhatsApp: +86 137 6048 1664
